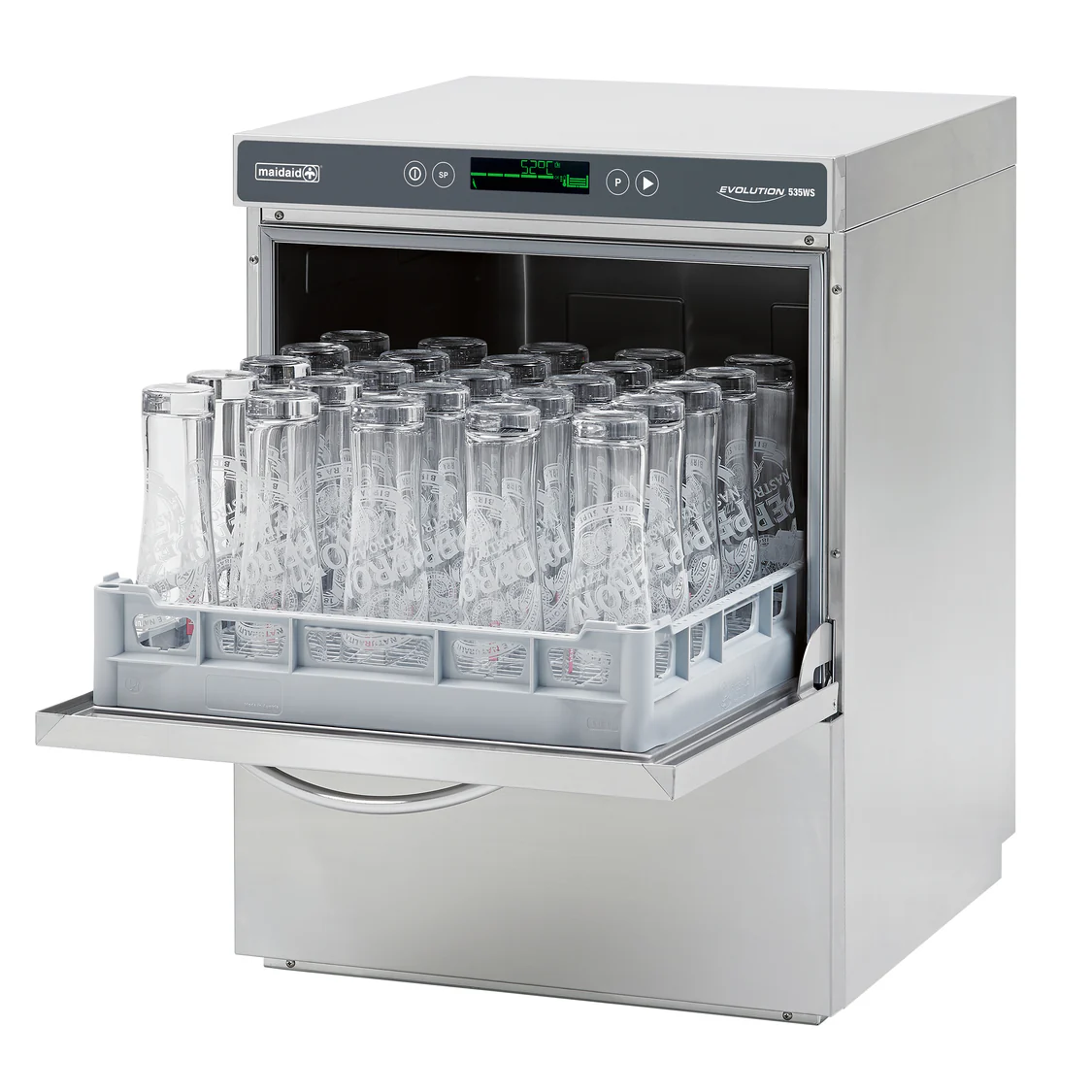

Maidaid Halcyon EVO535WS Undercounter Glasswasher

Make: Maidaid-Halcyon

Model: EVO535 WS

Power Supply: Electric – 2.6/4.5/6.5*kW – 13/20/30* Amps – *STANDARD

Dimensions: W600 x D630 x H810mm

Warranty: 2 Year Warranty

Evo – undercounter EVO535WS
Width x Depth x Height mm 600 x 630 x 810mm
Feet Height 10mm-20mm
Basket size 500x500mm
Maximum useable height 365mm
Door Opening 390mm
Cycle times 90/120/150 Seconds
Water consumption per cycle 1.8 Litres
Wash tank capacity 15 Litres
Phase – Options Single/3-Phase
Power – Single Phase Options 2.6kW(13Amp),4.5kW(20Amp),
6.5kW(30Amp)
Power – Three Phase 6.5kW(16Amp)
Detergent pump Peristaltic-Non Timed
Rinse aid pump Peristaltic-Non Timed
Drain pump Yes
Breaktank Yes
Water supply pressure 2 to 4 Bar
Body Construction Double Skin
Door/Hood Construction Double Skin
Scrap Trays Yes
Internal Rinse Booster Pump Yes
Number Of Cycles 3
Total Maximum Load(as supplied) 6.5kW(30Amp) – Single Phase
